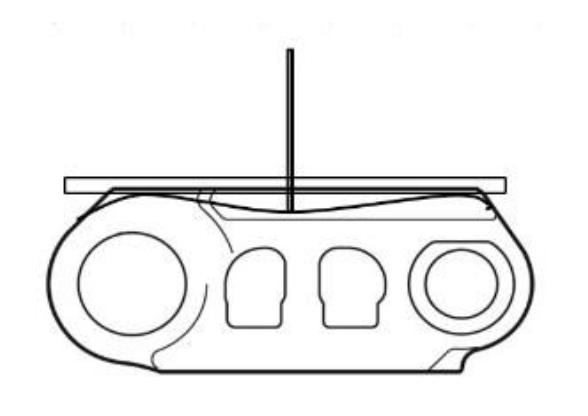

1 – Place the depth gauge across the length of the link.
2 – Push the pin through the middle of the lowest point of wear of the link.
3 – Measure the length of the pin.
Scallop Measurement
Need Support?Contact Support
1 – Place the depth gauge across the length of the link.
2 – Push the pin through the middle of the lowest point of wear of the link.
3 – Measure the length of the pin.
