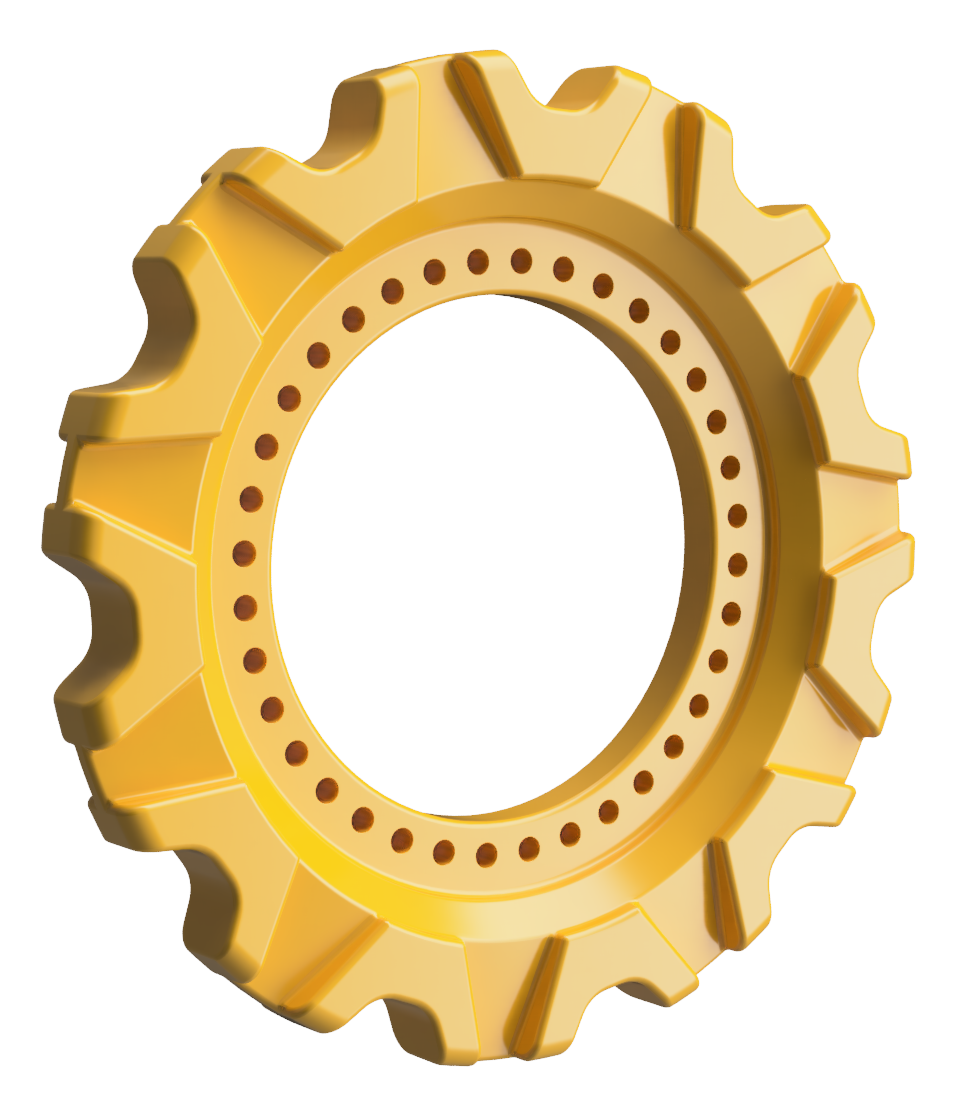

Sprocket – Tape measure/Calipers
Measure the sprocket as shown in the diagram. Ensure the measurement is taken from the end of the pocket, skip 1 pocket and measure to the beginning of the next pocket

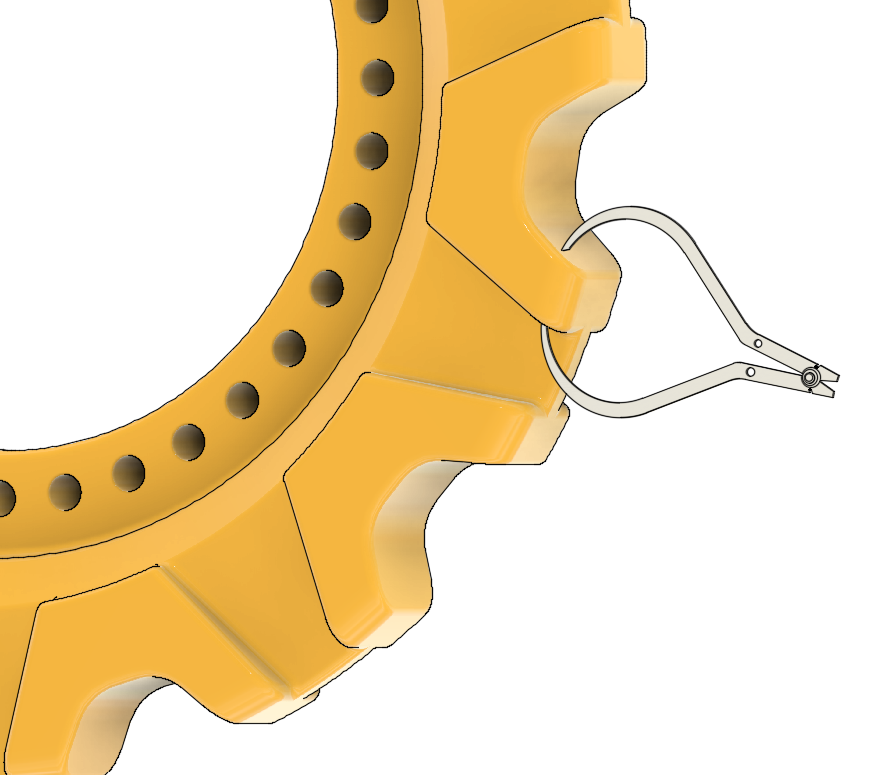

Sprocket Forward
Use Calipers to measure the thickness of the material where it will come into contact with the bush when the machine is moving in the forward direction.
Use a ruler to measure the difference between the gap of the Caliper teeth

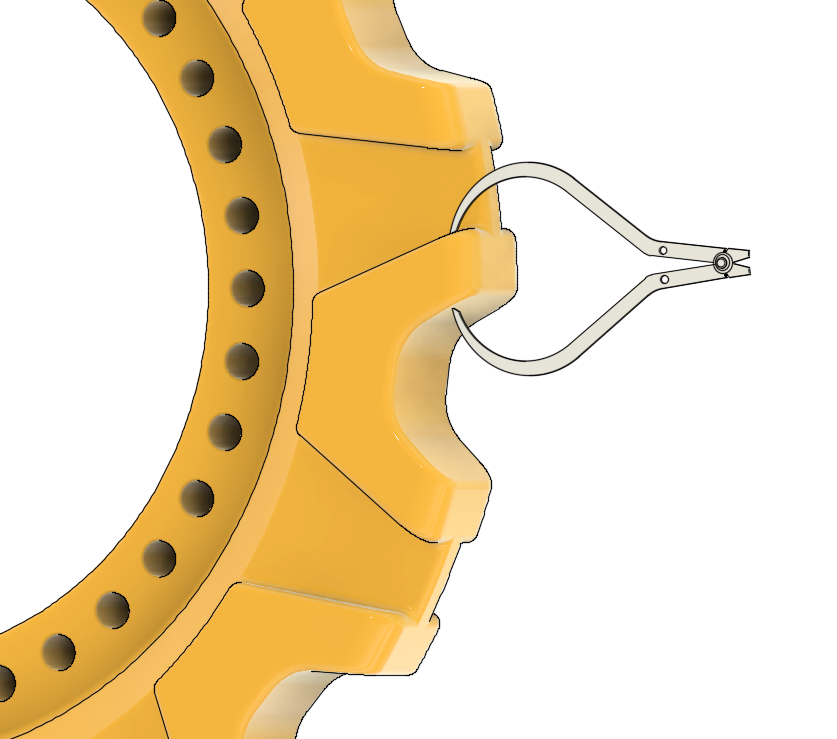

Sprocket Reverse
Use Calipers to measure the thickness of the material where it will come into contact with the bush when the machine is moving in the forward direction.
Use a ruler to measure the difference between the gap of the Caliper teeth
