New Chain

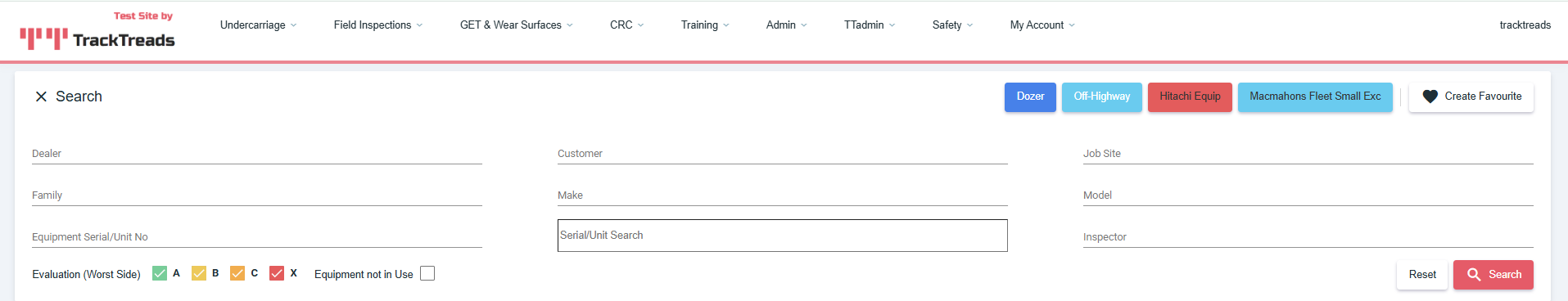

Once you are logged in to the Web Portal you will see the search screen
Use the filter criteria to find your equipment
Once you select the equipment

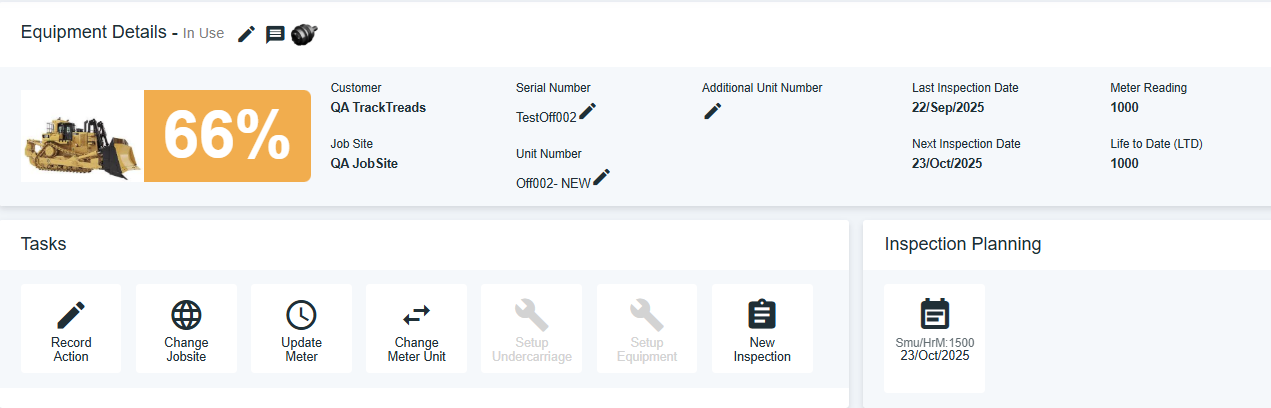

You will be directed to the Equipment details screen
Then select Record Action

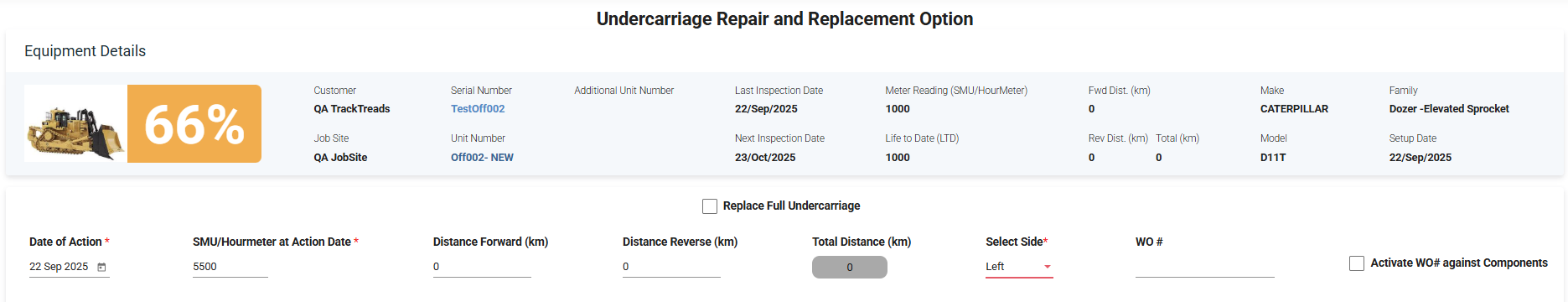

You will be redirected to the Undercarriage Repair and Replacement Option
Add the Date of Action, the SMU and the side you are recording the changes on
Once you have found the component in the component overview click on the select action dropdown
Click on replace

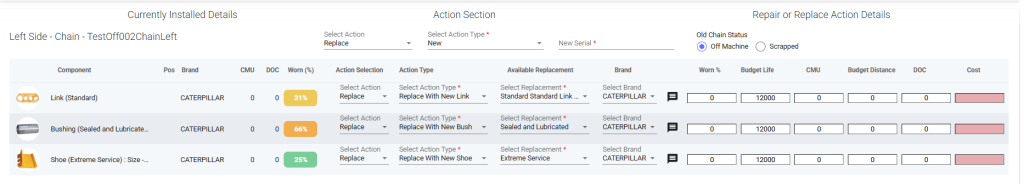

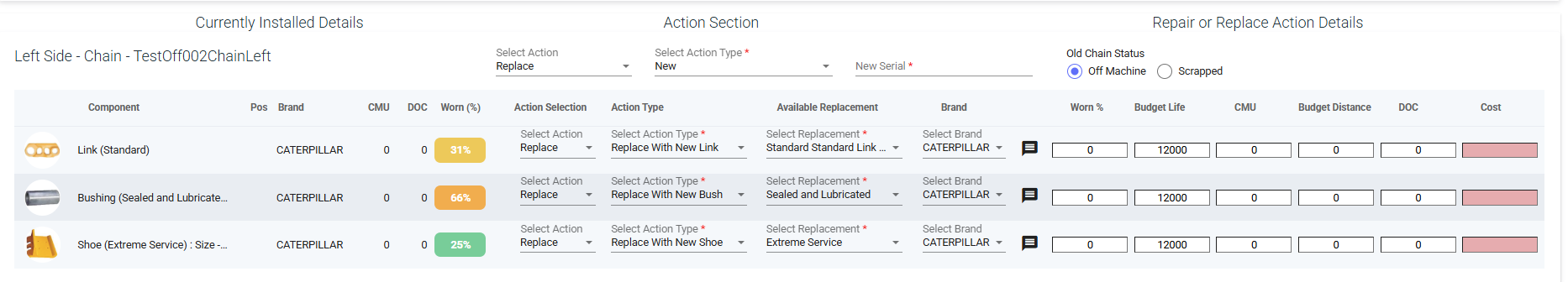

Select New, enter the new components Serial number and select the Old Chain Status
Once completed scroll down to the bottom of the screen and click Save/Update
Chain from Inventory
Once you are logged in to the Web Portal you will see the search screen
Use the filter criteria to find your equipment
Once you select the equipment
You will be directed to the Equipment details screen
Then select Record Action
You will be redirected to the Undercarriage Repair and Replacement Option
Add the Date of Action, the SMU and the side you are recording the changes on

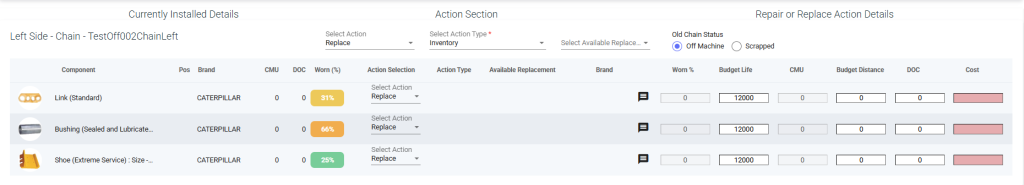

Once you have found the component in the component overview click on the select action dropdown
Click on Replace
Select Inventory
Then select an available replacement from the drop-down menu
Once completed scroll down to the bottom of the screen and click on Save/Update
