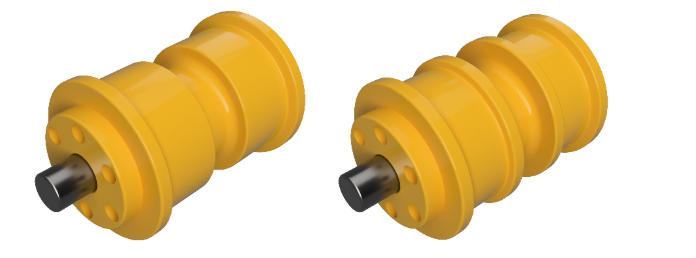

Track Roller with Callipers
1 – Place callipers at right angle to the track roller.
2 – Find the lowest points of measurements with the tips of the callipers.

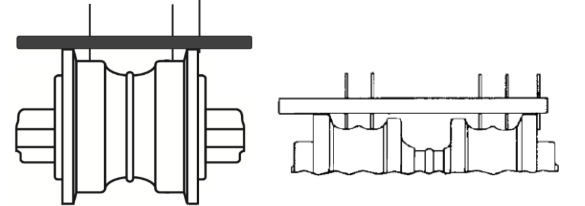

Track Roller with Depth Gauge
1 – Place depth gauge locating pin on rear of flange.
2 – Press pins down to roller tread surface.
3 – Measure length of each pin to get an average length.
Track Roller with Ultrasonic Tool
1 – Measure different points using the ultrasonic tool.
2 – Find and record the lowest reading.
3 – Ensure measurement is not over a bolt hole.
